UNIDIRECTIONAL (UNI GF)

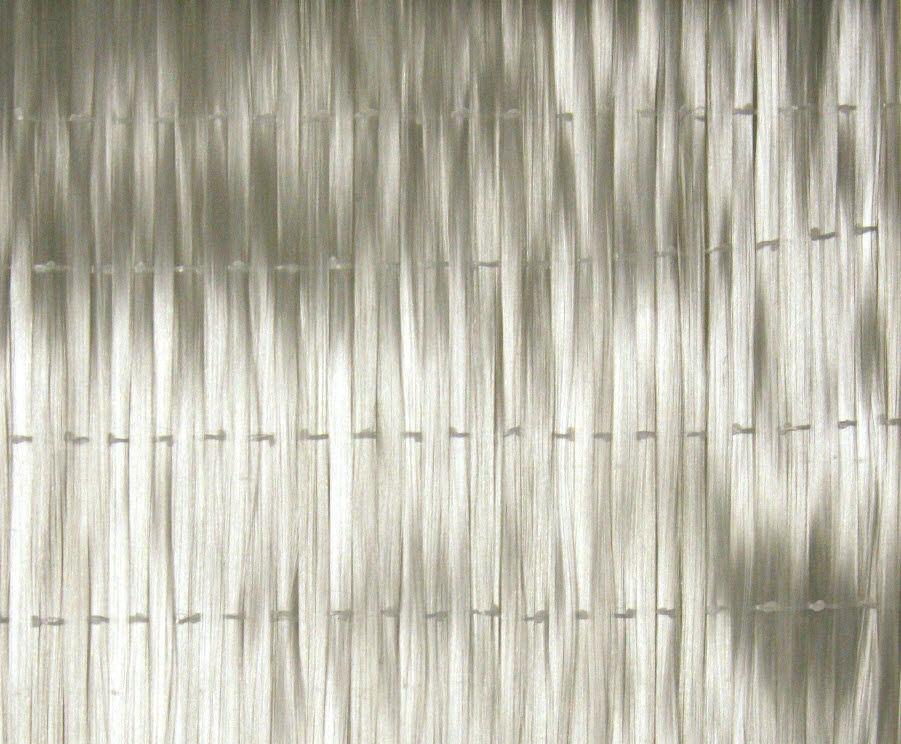

Unidirectional E-Glass Fabric (UNI GF)

Unidirectional E-Glass fabric delivers maximum tensile stiffness and strength in a single direction — the 0° warp. With 95%+ of fibre running lengthwise and minimal cross-stitch, it is the most efficient reinforcement for beams, spars, stiffeners, and any structure where load is predominantly uniaxial. Wet-out is fast and complete, and the fabric conforms well to simple curves.

Key Features

• High fibre volume in the 0° direction for maximum beam stiffness
• Lightweight cross-stitch holds tows in place without adding significant off-axis weight
• Excellent wet-out with epoxy, polyester, and vinyl ester resins
• Available in 460 g/m² (420mm wide) and 800 g/m² (1270mm wide)
• Sold by the 10m² cut or full price-per-roll (PR)

Typical Applications

• Boat spars, keels, and structural flanges
• Wind turbine blades and load-bearing composite beams
• Secondary reinforcement in sandwich panel skins
• Stiffening laminates where fibre direction is well defined
