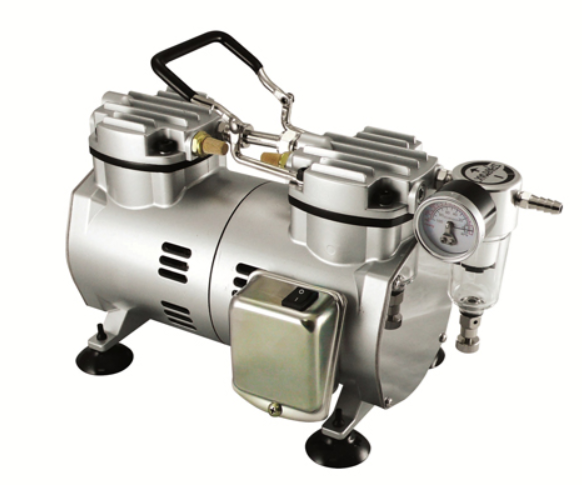

MODEL TC-63VP OIL FREE VACUUM PUMP

MODEL TC-63VP OIL FREE VACUUM PUMP
DESCRIPTION – MODEL TC-63VP (PARALLEL)
The model TC-63VP can be used as both a vacuum pump or air compressor.
Just connect to either the vacuum port or discharge port.
The pump is fitted as standard with the following features:
a) vacuum gauge
b) ¼” hose barb
c) Carry handle
d) Rubber mounting feet
e) Power cord
f) On/off switch
g) Clear bowl filter mounted on discharge.
TECHNICAL DATA
Type
Flow rate
Maximum vacuum
Max Pressure
Motor
Weight
Dimension (pump only)
Dimensions with filter
PERFORMANCE
Vacuum level
0mm Hg
300mm Hg
400mm Hg
500mm Hg
Dry piston – dual head
3.5 m3/hr (58 litres/min) -85kPa
480KpA
220 – 240 volts – 400 Watts – 1.7 amps
7.5kg
264 L x 200 H x 180 W
340 L x 200 H x 180 W
Flow rate
58 litres/min
37 litres/min
28 litres/min
16 litres/min
