CARBON BIAX

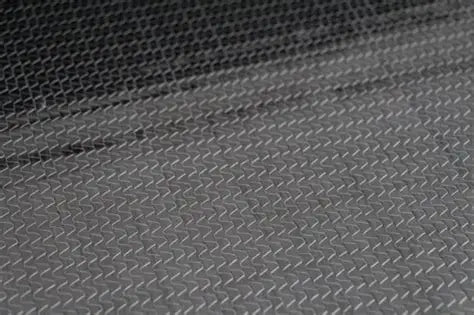

Carbon Fibre Biaxial Fabric (Carbon Biax)

Carbon Fibre Biaxial fabric has fibres oriented at 0° and 90°, providing balanced stiffness and strength in both the warp and weft directions. It is the carbon equivalent of a woven cloth but in a stitched non-crimp format, delivering better mechanical properties by keeping fibres straight rather than crimped over each other. At 500 g/m² and 1270mm wide, it suits large structural panels and skins where balanced biaxial carbon performance is required.

Key Features

• 0°/90° fibre orientation — balanced biaxial stiffness and strength
• Non-crimp stitched construction for improved mechanical performance
• 500 g/m² areal weight
• 1270mm wide for large-format structural applications
• Compatible with epoxy infusion and wet lay-up systems
• Per 10 m² cut or full roll

Typical Applications

• Carbon sandwich panel face sheets
• Structural skins on hydrofoils, blades, and marine structures
• Laminate plies where balanced biaxial carbon properties are needed
• Combined with carbon UNI for custom quasi-isotropic stacks
